2-50. TOWBAR CONNECTION/DISCONNECTION (CONT)
Ensure pins are installed with lynch pin holes down. Failure to comply may
result in damage to equipment.

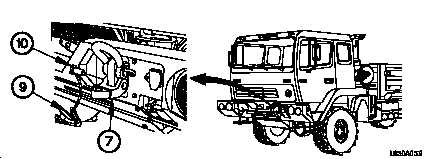

(9) Position two pins (10) in towbar adapters (7).
(10) Install two lynch pins (9) in pins (10).
Towbar weighs approximately 150 lbs (68 kgs). Attach a suitable
lifting device prior to installation. Failure to comply may result in
injury to personnel or damage to equipment.
Left and right sides of towbar are installed on towbar adapters the
same way. Left side shown.
Step (11) requires the aid of two assistants.

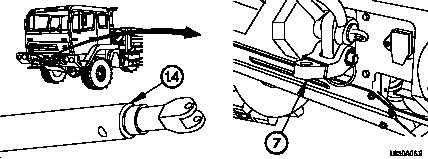

(11) Position towbar (1.4) on two towbar adapters (7).
