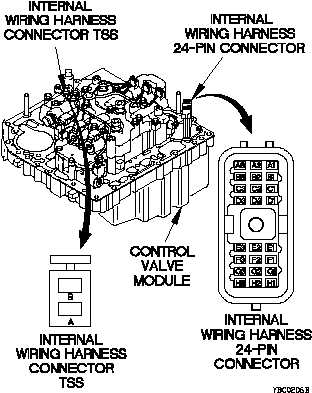

CONTINUITY TEST
(1) Set multimeter to ohms.
(2) Connect positive (+) probe of multimeter to
internal wiring harness 24-pin connector
pin E3.
(3) Connect negative (-) probe of multimeter to
internal wiring harness connector TSS pin B
and note reading on multimeter.
(4) If continuity is not present, replace
transmission internal wiring harness
(para 7-13).
(5) Connect positive (+) probe of multimeter to
internal wiring harness 24-pin connector
pin E3.
(6) Connect negative (-) probe of multimeter to
all other pins in internal wiring harness
24-pin connector and note reading on
multimeter.
(7) Connect negative (-) probe of multimeter to
ground and note reading on multimeter.
(8) If continuity is present, transmission
internal wiring harness is shorted; replace
transmission internal wiring harness
(para 7-13).
