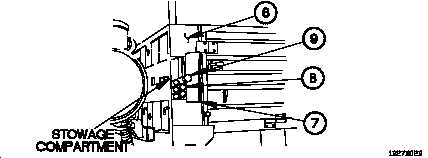

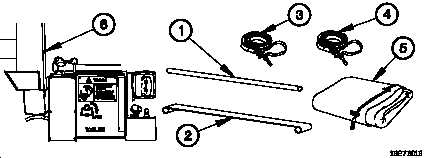

TM 9-2320-365-10b. Soft Top (Steel Bows) Installation.(1) Lower ladder (para 2-26a).(2) Lower spare tire (para 3-5).WARNINGCargo cover weighs approximately 60 lbs (27 kgs). An assistant isrequired to lift cargo cover. Failure to comply may result in injuryto personnel or damage to equipment.NOTEStep (3) requires the aid of an assistant.(3) Remove rear five tubes (1), four braces (2), left strap support (3), right strap support(4), and cargo cover (5) from cargo bed (6).(4) Open stowage compartment door (7).(5) Remove five front tubes (8) and steel pole (9) from stowage compartment.(6) Close stowage compartment door (7).Change 1 2-219
